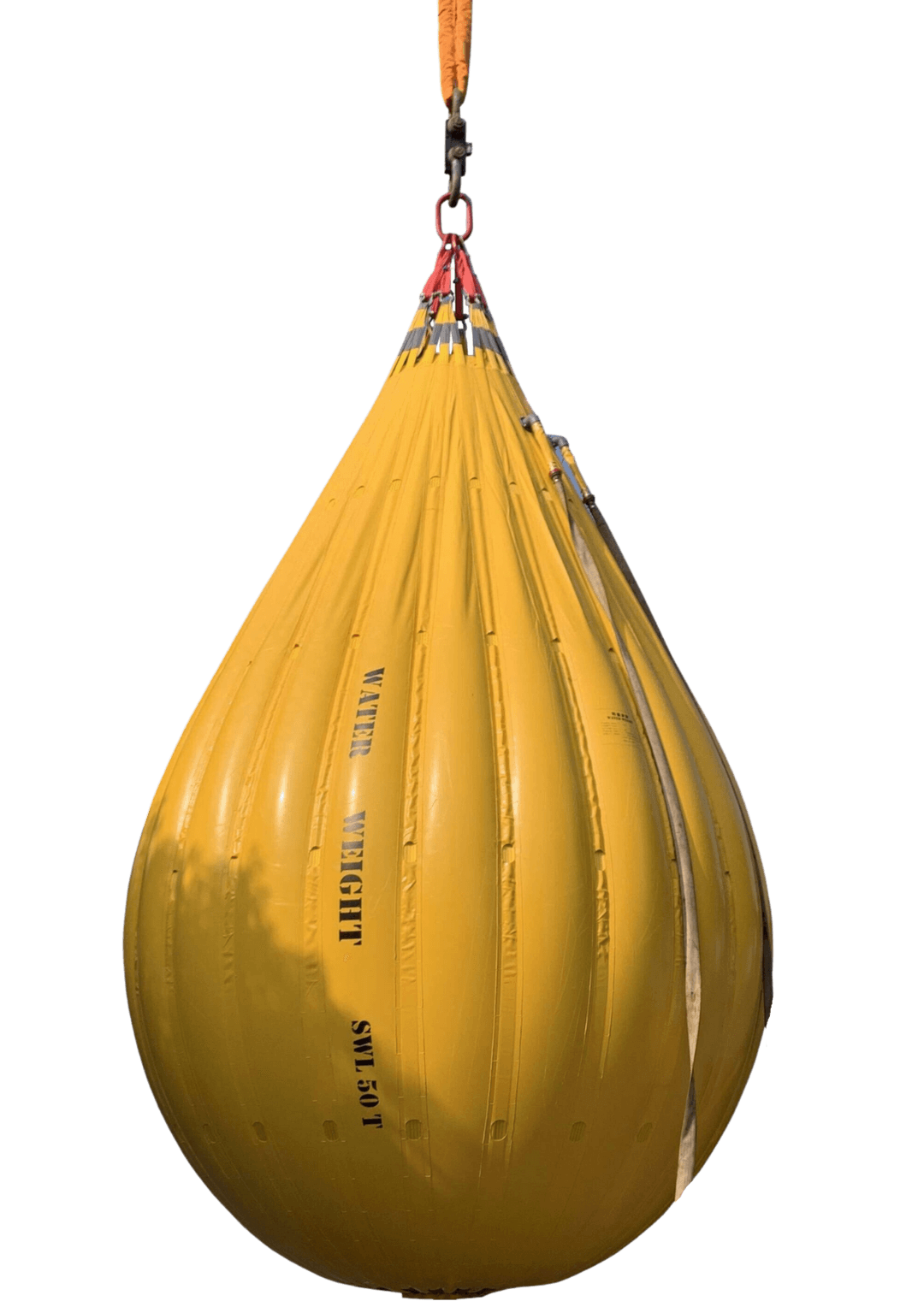

Load Test BalloonsMakstelar Group

Makstelar water weight load test balloons are used in the control tests of all kinds of lifting devices such as cranes and davits on land and sea. Different tonnage products are available with lifting capacities from 1 ton to 250 tons. Weight water test balloons are produced by combining parts with high quality imported PVC coated fabrics with special welding technique. The rope placement surrounding the entire body ensures that the load is distributed evenly and test safety is increased. Thanks to the water discharge center equipment used at the joints of the parts, in addition to increasing durability, the water discharge time is also shortened. The water discharge equipment positioned at the joints of the parts balances the center of gravity and allows the ropes to move more easily in order to eliminate a possible loss of balance during the test. The highest quality products such as heavy load resistant special PVC coated fabrics and 316L steel filling and discharge products that comply with European standards are used in our water weight test balloons.

Load Test Balloons Capacity and Technical Specifications

Do not modify the unit without prior approval from the manufacturer. Place the water bag on a flat surface that should be free of any obstacles and turn it on. Keep all objects of any shape and potential danger away from the water bag. Do not twist or tie the slings or sling drawstrings with knots. Pass one end of a sling loop through the eyes of a sling pack (pack of 3) that was pre-assembled during production. Lift the sling knob while holding the eyes together. Repeat the previous two steps for the remaining sling packs and the sling is assembled accordingly.

Balon teknik
ModelHeight (cm)Dia ⌀(cm)Weight(KG)
Max 1T25013020
Max 5T20020080
Max 10T500250110
Max 15T500300150
Max 20T600340180
Max 25T600345220
Max 35T700380315
Max 40T700410375
Max 50T800450420
Max 55T800460445
Max 110T1000580980
Max 250T150012002490

Lifting Capacity Range is 1 - 250 tons.

Max 1T

%10

Max 50T

%25

Max 110T

%45

Max 250T

%100
