In 2022, a total of 12,384 hectares of forestland burned in 2,043 separate fires in Türkiye. Makstelar Group has produced a new product that will solve this important problem we face every summer. Helixpool, which is produced entirely with domestic resources, was specially designed for firefighting helicopters that play an active role in combating forest fires. Thanks to the portable firefighting water pool, remote level control can be made and it can be installed at the closest point to the fire due to its easy transport. In this way, it enables the helicopters to increase the number of sorties.

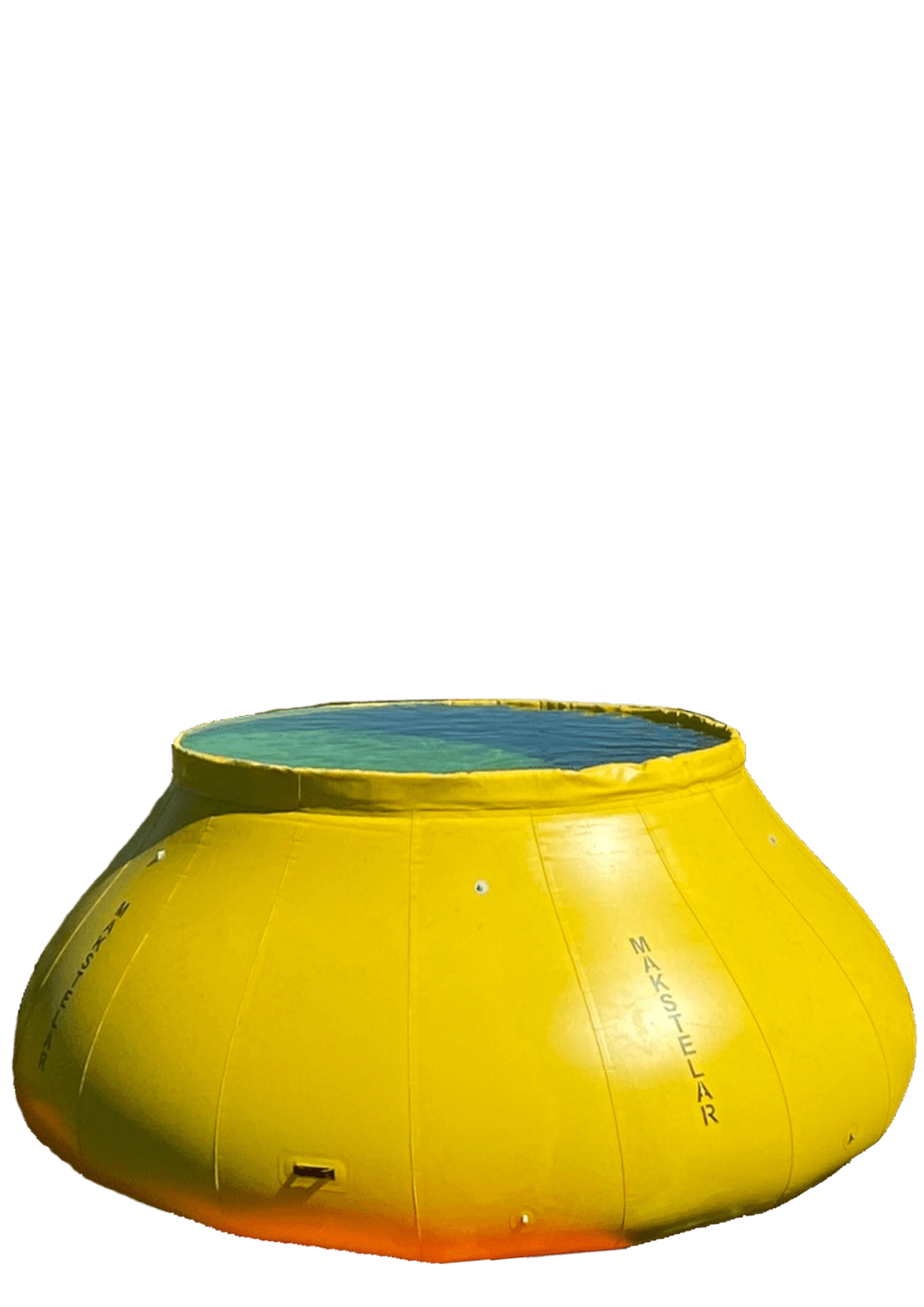

Capacity and Technical Specifications of Portable Smart Water Pool Helixpool

Makstelar Group has started to produce "Portable Smart Water Pools" with an innovative approach and national understanding to extinguish forest fires, especially in the summer months, in our country. Smart Water Pools, produced according to international standards, make a difference against their counterparts thanks to their extra features.

60 Tons Water Usage Capacity
Monitoring pools via web, seeing water levels.
GPS positioning and international low-latency communications standard
It is compatible with many browsers in use.
Thanks to the web-based system, the management panel can be easily accessed from all computers.
Pilots can get support in operations by logging in from mobile devices.

Advanced dual-core processor

Maximum performance with low power consumption

Local software (location & communication)

3m location accuracy, communication with SIM card

Reduced electronic noise level

Optimized systems on a single motherboard

Integrated temperature sensor

Ability to monitor motherboard and component temperature

Integrated humidity sensor

Waterproofing measure and early moisture detection

Battery management system

Option to use with solar panel

Water level measurement sensor

Water level measurement developed specifically for the project

HelixPool's Distinctive Features

Sealing and Impact Testing

Helixpool Portable Smart Water Pools have successfully passed tests for all problems that may be encountered in helicopter operations, especially impact and leakage during the production stages. They have met international standards and have been certified.

Smart Systems

With digital transformation, human safety and cost-effective solutions have become increasingly prioritized. By making mobile fire water tanks smart, a new system will be implemented that can serve as a global example in firefighting operations.

Helicopter Compatibility

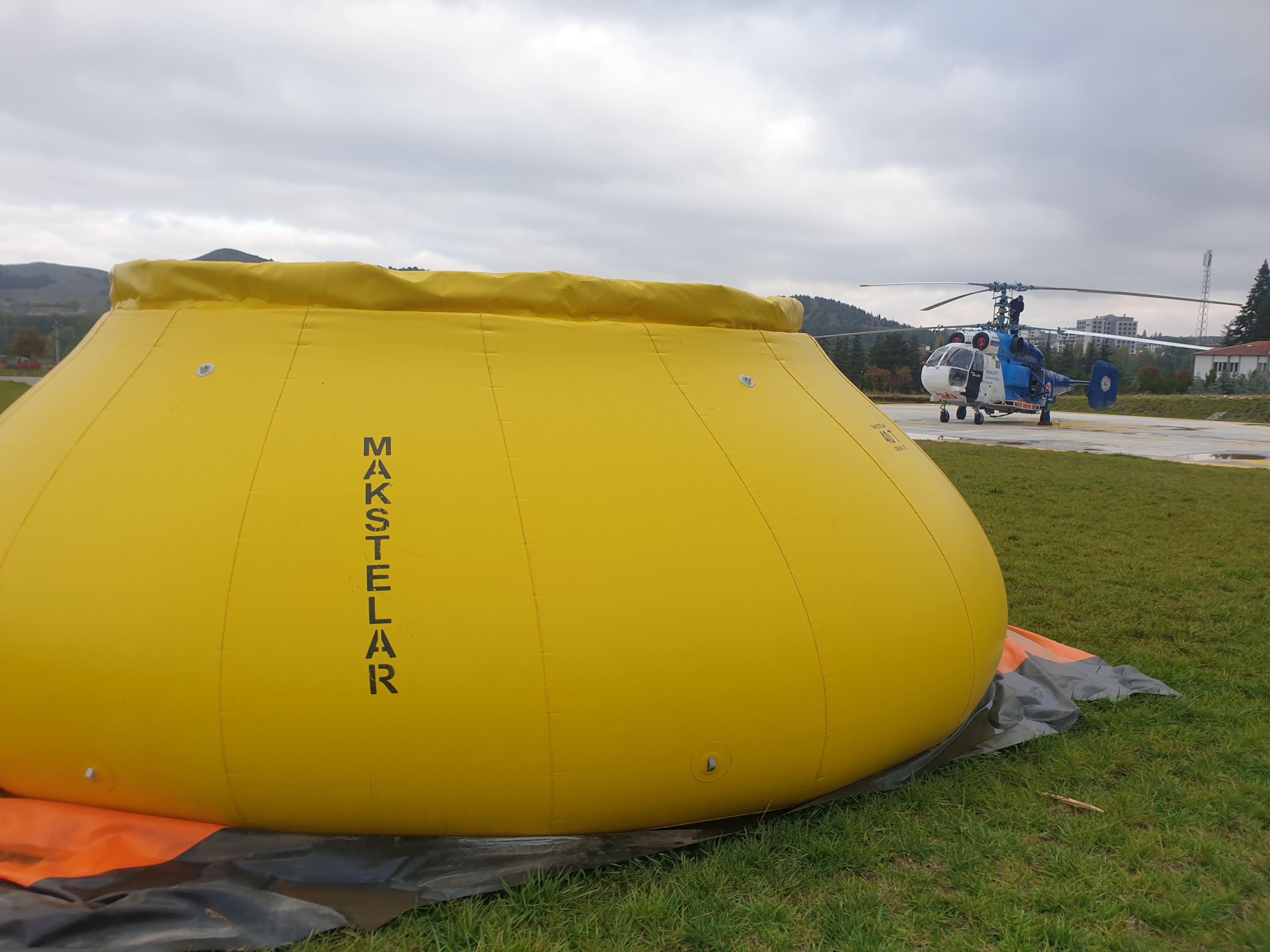

As an alternative to areas lacking natural water sources or where the water source is located far from the fire zone, these easily deployable mobile water tanks enable rapid and direct firefighting response. Helicopters are no longer dependent on a single fixed water source and can instead utilize strategically placed mobile reservoirs.

Water-Filled Structure
The tank does not collapse or lose its shape (flotation stability) as the water level drops.
Equipped with a hydrant connection to both supply water to or draw water from fire trucks and tankers.
Can be set up easily by just 2–3 personnel.
Easily disassembled and relocated to nearby areas as needed.
Multi-point ground anchoring system to resist helicopter rotor downwash.
Features phosphorescent strips and strobe lights for nighttime visibility, aiding helicopter operations during night missions.
Reinforced rubber collar to protect against impact and snagging from Bambi Bucket attachments.

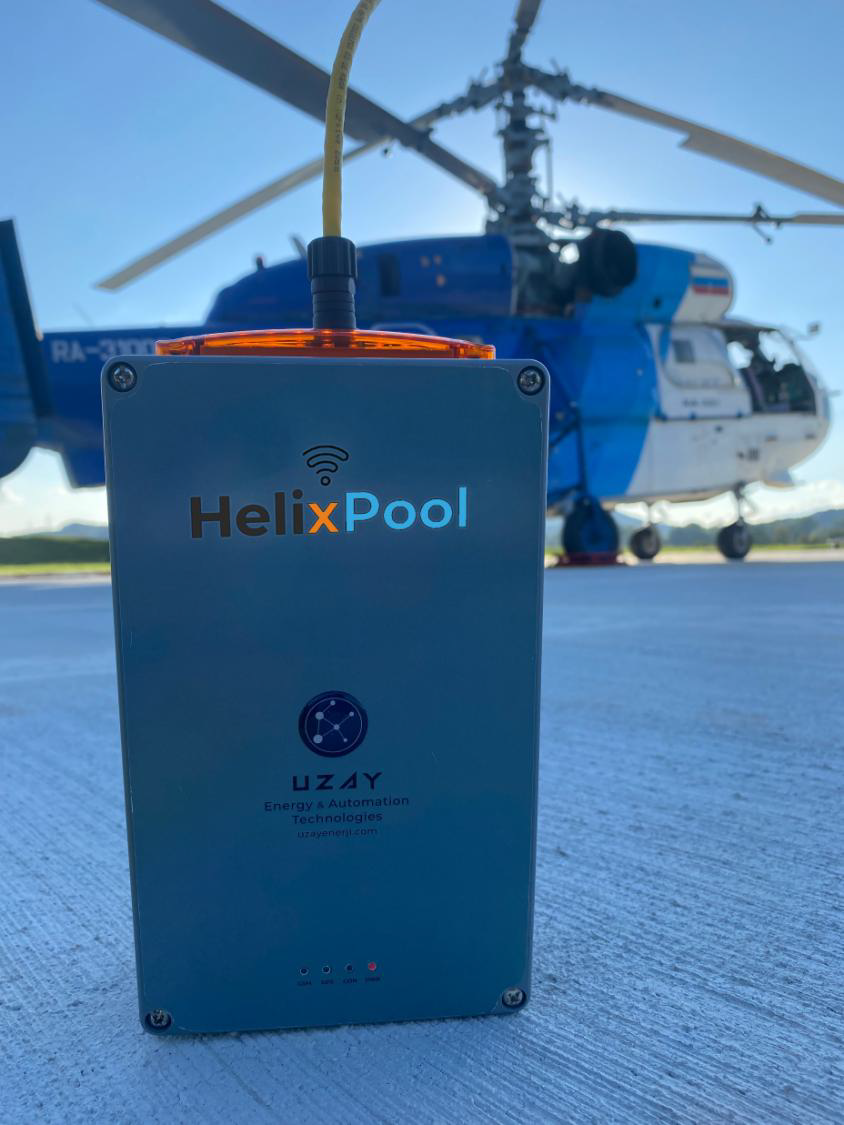

Its smart functionality allows remote monitoring by transmitting real-time location and water level information."

Technical Specifications

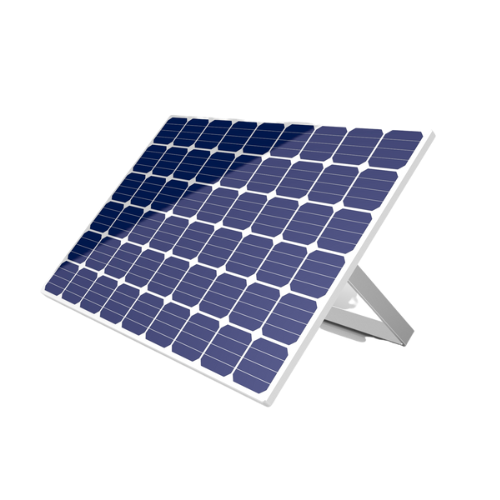

Solar Panel

As an optional feature, solar panels can be attached to smart boxes integrated into the water tanks. Thanks to IP65-rated connectors, these solar panels can be easily connected and provide a continuous power supply during operations, enhancing operational capability in the field.

  • Technical Specifications
  • Cell Type
  • Power
  • Panel Efficiency
  • Max. Power Voltage (Vmp)
  • Max. Current (Imp)
  • Open Circuit Voltage (Voc)
  • Short Circuit Current (Isc)
  • Max. System Voltage (DC)
  • Weight
  • Dimensions (W × D × H)
  • YKS10PP
  • Poly Crystal
  • 10W
  • 11.0%
  • 18,00V
  • 0,56A
  • 21,80V
  • 0,67A
  • 1000V
  • 1,4 Kg
  • 30*30*20 cm

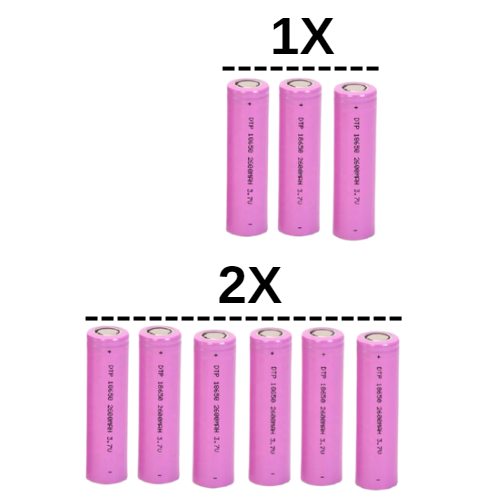

Battery

Thanks to its lithium-ion battery design, the system ensures 48 hours of uninterrupted operation. With an expandable battery configuration, extended operational durations are possible in various versions.

  • Technical Specifications
  • Size
  • Terminal Type
  • Nominal Capacity
  • Quantity Used
  • Nominal Voltage
  • Chemical Composition
  • Charging Capability
  • Short Circuit Current (Isc)
  • Weight
  • Dimensions (W × D × H)
  • 18650 3.7V
  • 18650
  • Başsız
  • 1800 mAh
  • 4
  • 3.7 V
  • Lityum - İyon
  • Rechargeable
  • 10 A
  • 48,5 g
  • 18*65 mm

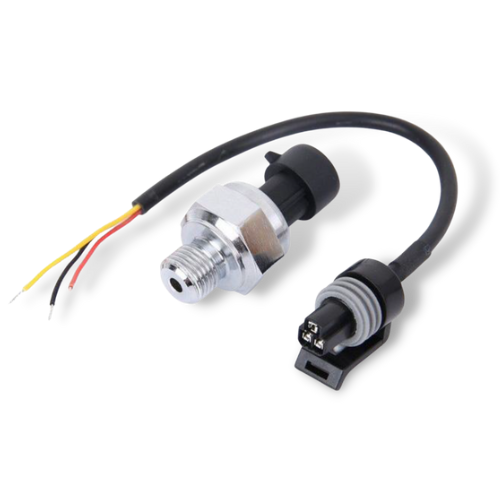

WATER LEVEL SENSOR

Tasarımı Space Energy and Automation Technologies The pressure-sensitive water level sensor, developed specifically for the project and provided by the manufacturer, transmits the remaining water volume in the tank to pilots and all operational stakeholders. This enhances operational efficiency and improves team coordination. The water level can be monitored remotely.

  • Technical Specifications
  • Size
  • Conductor
  • Material
  • Quantity Used
  • Accuracy
  • Measurement Type
  • Connection
  • Special Design (*)
  • 4 Metre
  • Signal and Image Processing
  • Flex Cable
  • 1 / Product
  • 30 cm
  • Pressure Gauge
  • IP 65 Connector

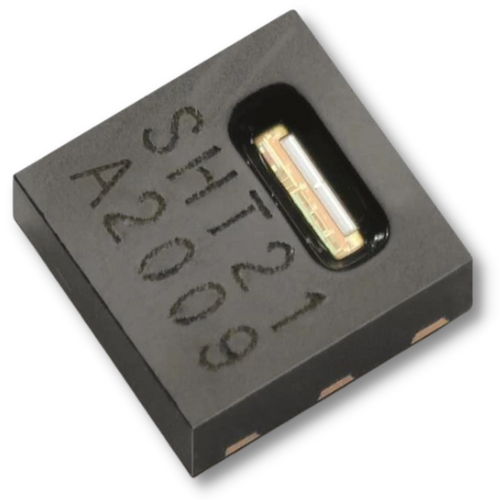

TEMPERATURE SENSOR

The smart device includes an integrated temperature sensor that continuously monitors the internal temperature of the circuit board in real time. Operating temperature data of processors and other electronic components is recorded and can be remotely accessed. Thanks to the high-precision sensor that performs measurements every 10 seconds, the system ensures enhanced device health monitoring and increased operational safety.

  • Technical Specifications
  • Resolution
  • Repeatability
  • 40 Bit Sensor
  • %1Rh 8 Bit
  • +-%1
  • Measurement Range
  • 0°C - %30Rh - %90Rh
    25°C - %20Rh - %90Rh
    50°C - %20Rh - %80R
  • Reaction Time
  • Data Format
  • 6sec - 15sec
  • 40 Bit

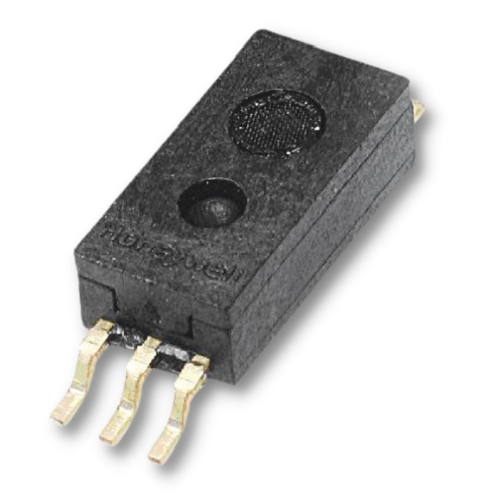

HUMIDITY SENSOR

The smart device is equipped with an integrated humidity sensor that continuously monitors whether the system is operating under optimal environmental conditions. In the event of water ingress, the high humidity detection alarm triggers an alert to the system, enhancing both safety and operational reliability. This provides superior protection and increased operational capability.

  • Technical Specifications
  • Resolution
  • Repeatability
  • Accuracy
  • Measurement Range
  • Response Time
  • 40 bit Sensor
  • 1°C 8 Bit
  • +-1°C
  • +-1°C - +-2°C
  • 0°C - 50°C
  • 6sec - 30sec

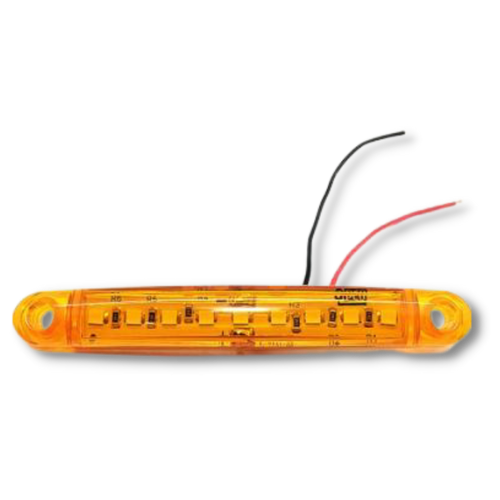

FLASHER

The strobe light located on the top of the device housing is designed to help pilots clearly identify the tank location during nighttime operations. The flashing pattern of the strobe can be customized via the web interface under the tank settings section. Its light behavior (on/off duration) can be adjusted remotely through the interface to meet operational requirements.

  • Technical Specifications
  • Basic Feature
  • Mode 1
  • Mode 2
  • Mode 3
  • Mode 4
  • 40 bit Sensor
  • Configurable
  • 5sec Open / 20sec Close
  • 1sec Open / 5sec Close
  • 1sec Open / 1sec Close
  • Always On

HELIXPOOL – TECHNICAL DATA

Designed to enable rapid deployment in firefighting operations, the system can be set up at the desired location by 2–3 personel, with weight and structural features optimized according to operational conditions.

60 Tonne
Capacity & 2-3 Personel
25m² Floor Area
/ 15m² Water Intake Area
Impact and High Voltage Resistant
Special Body Fabric
